Raised Access Floor Accessories Series

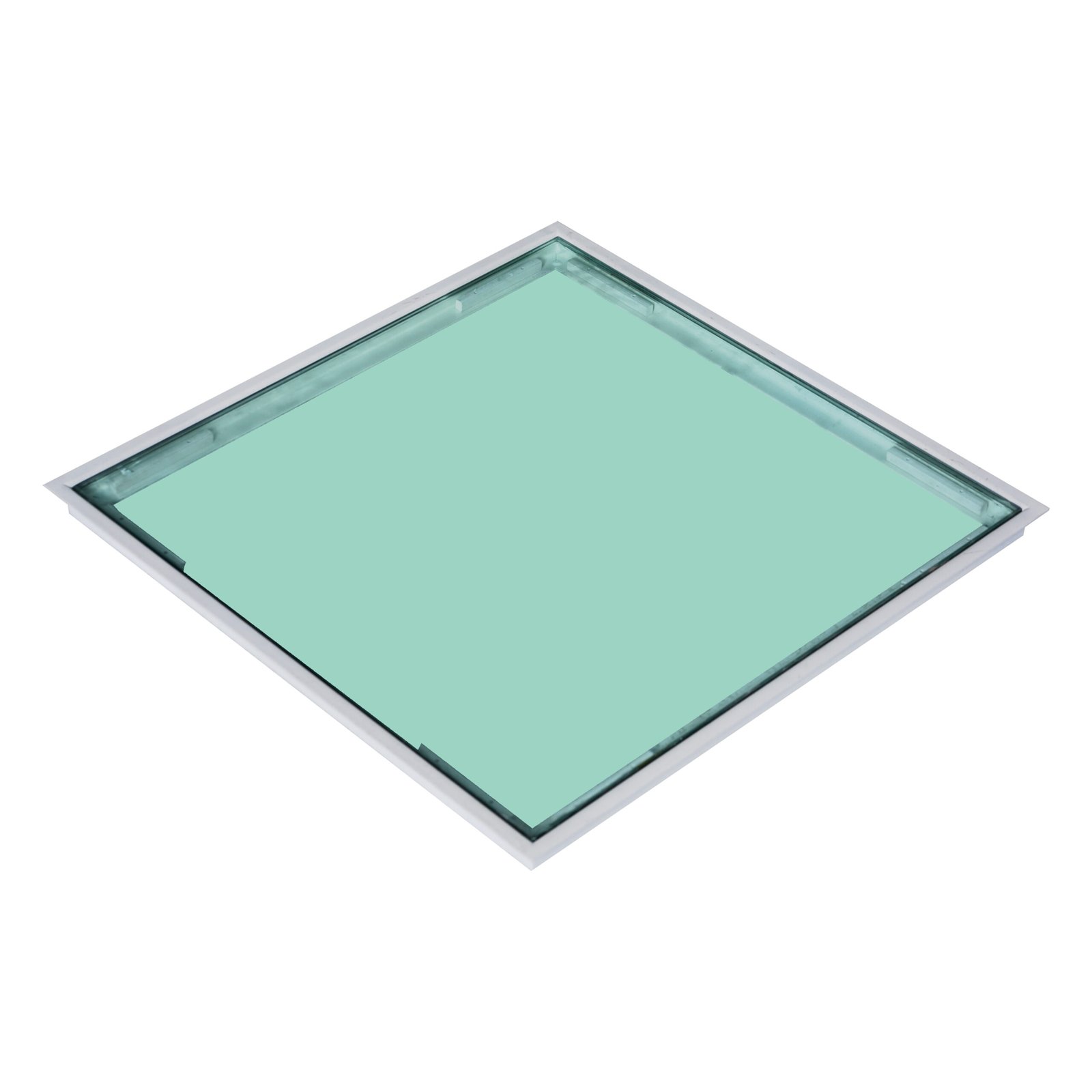

Glass panel
Introduction:
Glass raised floors (also known as glass access floors or vision panels) are specialized flooring systems used in commercial, industrial, and architectural settings.
The glass panel is 20mm thick made of two layers of stalinite for safety and durability. These panels provide transparency to allow visibility into the underfloor.
Product Features：
Panel size: 600x600mm/610x610mm
Loading capacity: 360kg
Applications: data centers, museums, libraries, offices, and so on.
The glass panel is 20mm thick made of two layers of stalinite for safety and durability. These panels provide transparency to allow visibility into the underfloor.
Product Features：
Panel size: 600x600mm/610x610mm
Loading capacity: 360kg
Applications: data centers, museums, libraries, offices, and so on.

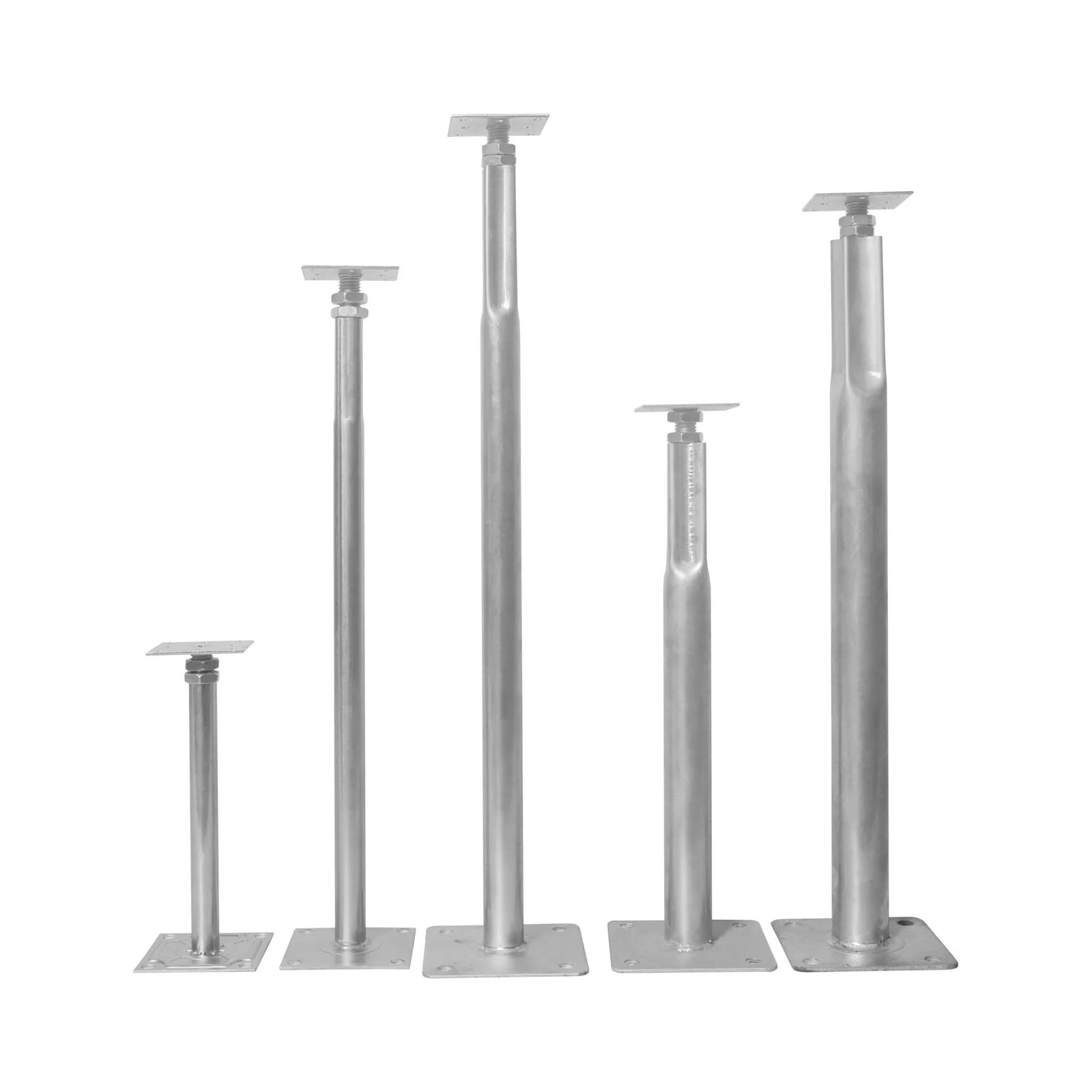

Floor pedestal
Steel cement raised access floor
Calcium sulphate/woodcore raised access floor
Aluminum raised access floor
Flooring pedestals are critical components of raised access flooring systems. It provides the structural support that elevates floor panels above the subfloor to create a void for cabling, HVAC, or other utilities.
Floor stringer

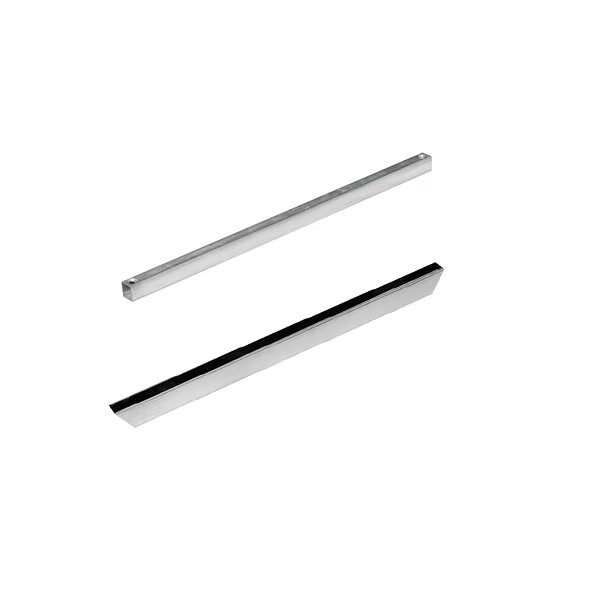

short stringer

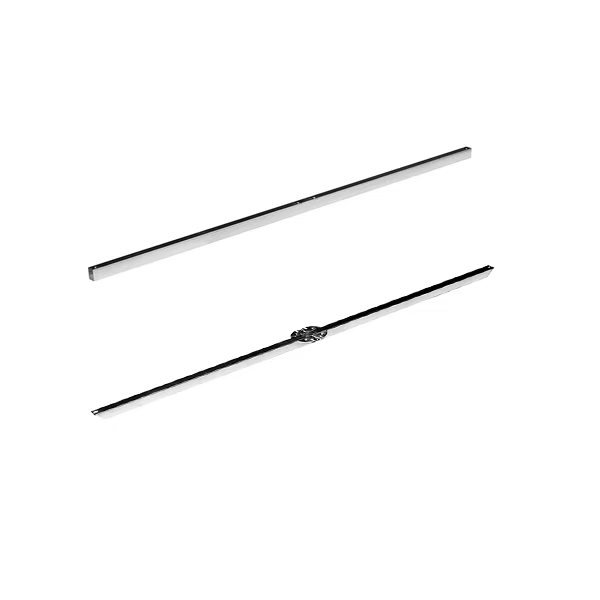

Long stringer
Raised floor stringers are horizontal support components in raised access flooring systems, which connecting pedestals to enhance structural stability, load distribution, and floor rigidity. They are critical for ensuring a level and durable floor, particularly in high-traffic or heavy-load environments like data centers, offices, and clean rooms.
Seismic structure

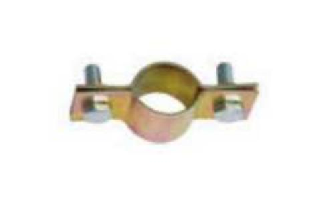

OD28mm

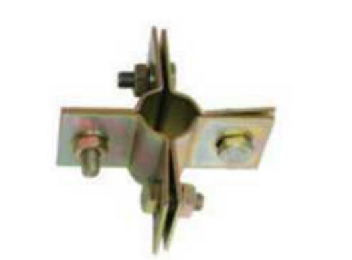

OD32mm

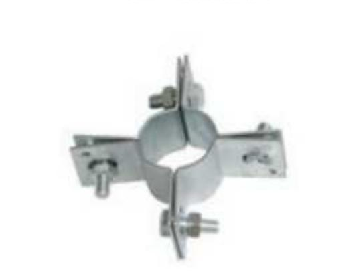

OD38mm

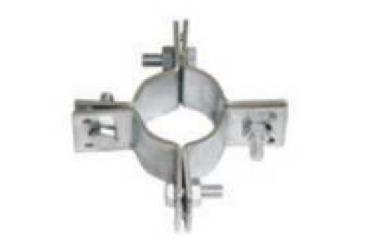

OD45mm

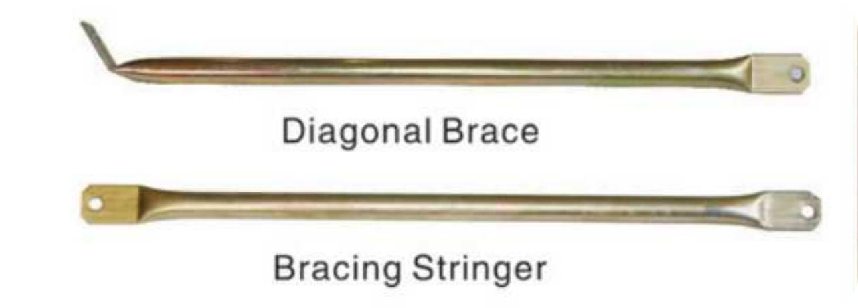

Diagonal Brace
Bracing Stringer
Bracing Stringer

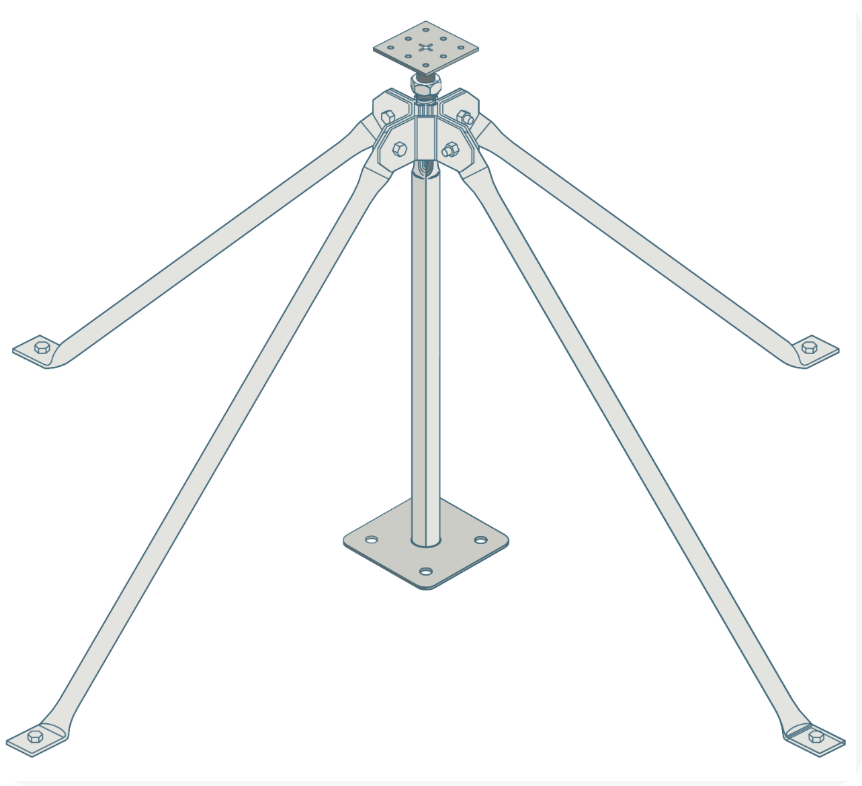

Seismic Bracing
Diagonal braces and bracing stringers in raised access floor systems are structural components, which used to enhance stability and resist lateral forces, such as those from seismic activity or wind loads. They connect pedestals diagonally, often forming triangular or X-shaped configurations, to prevent swaying and ensure the floor system remains rigid. These braces are typically made of steel and are used in conjunction with horizontal stringers and pedestals to form a robust understructure. They are particularly critical in high-traffic environments, data centers, or seismic-prone areas to maintain structural integrity and protect equipment.
Floor box
250×220mm
250×220mm
130×130mm
130×130mm
Outlet boxes, also known as floor boxes or service boxes, are integrated components of raised access flooring systems, which provide convenient access to power and telecommunications connections. These boxes are recessed into or mounted beneath the raised floor panels. They offer a clean and flexible distribution of utilities in environments like offices, data centers, or commercial spaces.
Floor lifter
Single-cup lifter
Double-cup lifter
These tools, such as suction cup lifters, double-cup lifters, or mechanical lifting devices, are essential for facility managers, maintenance teams, and flooring contractors. They can prevent damage to panels and reduces injury risk compared to manual lifting or using improvised tools.
Grommet
size:280×210mm
size:165mm
Grommets are specialized components, which used in raised access flooring systems to manage and protect cables passing through cutouts in floor panels. They provide a clean and safe way from the underfloor. Grommets also protect cables passing through floor panels, preventing tangling or damage.
Bandsaw
Introduction:
Bandsaw is tripod supporting structure with main engine 35.5kg, with working table and pedestals 13.5kg, totally the whole weight is 48.8kg. It’s more convenient compared with regular cutting bandsaw with speed of 240mtr per minute of cutting blade.
It is 1.5m high and working table is 1.3m high. According to human engineering, The bandsaw is suitable for human standing operation machine height.
This bandsaw is necessary for raised floor installation, like cutting metal, wood, and so on.
It is 1.5m high and working table is 1.3m high. According to human engineering, The bandsaw is suitable for human standing operation machine height.
This bandsaw is necessary for raised floor installation, like cutting metal, wood, and so on.
