Steel cement raised access floor with anti-static HPL finish
Technical Specs

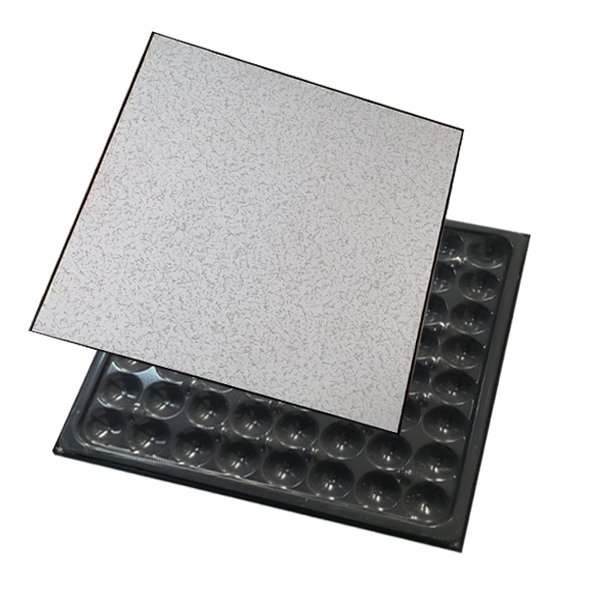

The anti-static flooring is made of high quality deep stretch coil steel sheet and SPCC steel sheet, which is punched, spot-welded, coated with epoxy powder after had been phosphorated. The panel is filled with foamed cement inside. After being kept for a period of time, it forms a stable support structure. The top sheet is stuck with anti-wear and antistatic HPL. And the panel is installed with stringer and pedestal.
| Type | FS700 | FS800 | FS1000 | FS1250 | FS1500 | FS2000 |
| Size(mm) | 600×600 | 600×600 | 600×600 | 600×600 | 600×600 | 600×600 |
| Thickness (mm) | 35 | 35 | 35 | 35 | 35 | 35 |
| Concentrated Load(N/KG) | 2950/300 | 3550/363 | 4450/454 | 5560/567 | 6665/680 | 8908/909 |
| Rolling Load(N) | 2255 | 2950 | 3560 | 4450 | 5560 | 7790 |
| Ultimated Load(N) | 8850 | 10650 | 13350 | 16680 | 19995 | 26724 |
| Uniform Load(N/M2) | 12500 | 16500 | 23000 | 33000 | 39324 | 52557 |
| Fire protection performance | Non-combustible Material | Non-combustible Material | Non-combustible Material | Non-combustible Material | Non-combustible Material | Non-combustible Material |
With reference to National Standards and US CISCA test Standards.
Anti-static flooring HPL Colors
GH-1101
GH-1102
GH-1103
GH-1104
GH-1105
GH-1106
GH-1107
GH-1108
GH-1109
GH-1110
GH-1111
GH-1113
GH-1114
GH-1115
GH-1116
GH-1117
GH-1118
Anti-static floor system resistance 106~1010Ω.
Type
Type1

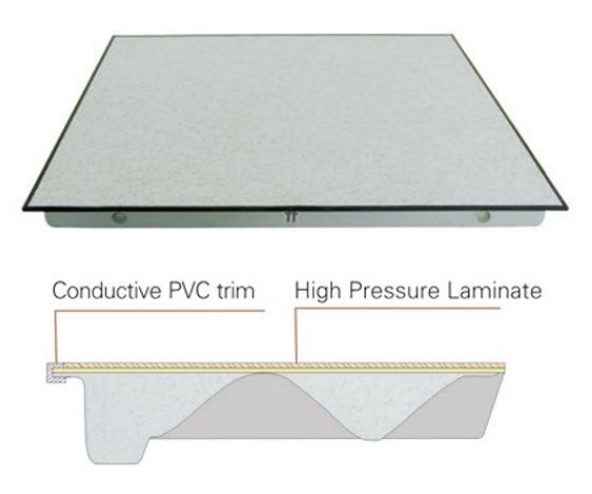

Steel HPL panel with conductive PVC edge trim
Type2
Panel with monolithic edge trim will provide a finish with no joints. This is recommend in high demanding data centers.
Type3

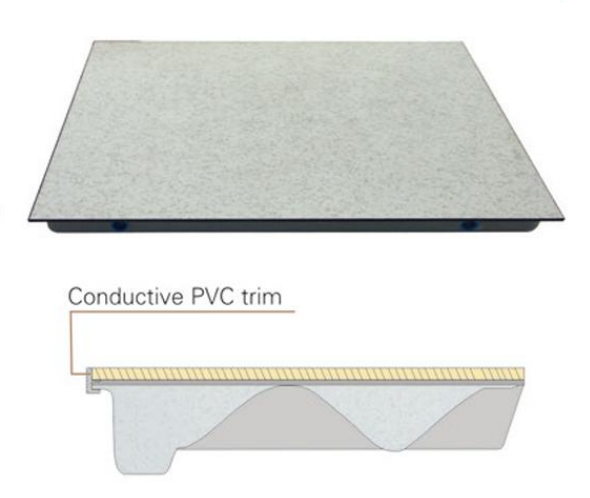

“F” edge trim is inserted in between the steel panel and the surface finish. The inserted “F” edge trim is very firm and stable. HPL panel with “F” edge trim creates perfect installation effect with tiny seam, which can applied in high-grade compyter room.
Type4

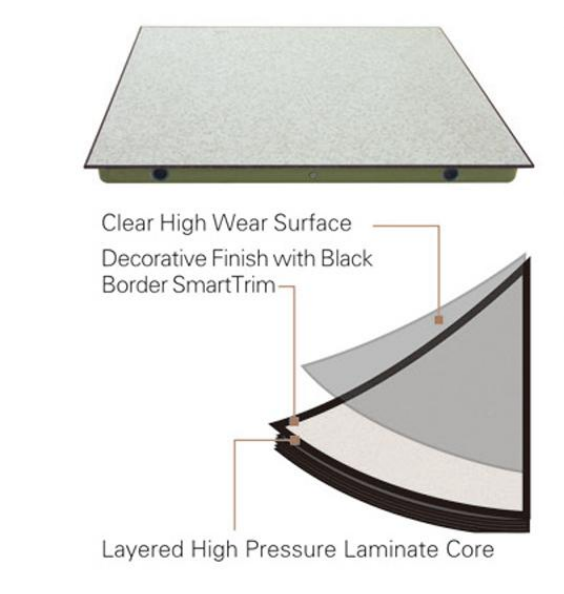

HPL panel with imprinted edge. Collecting both advantages of PVC trim and monolithic edge trim panel. It will be suitable for data center.
Type5

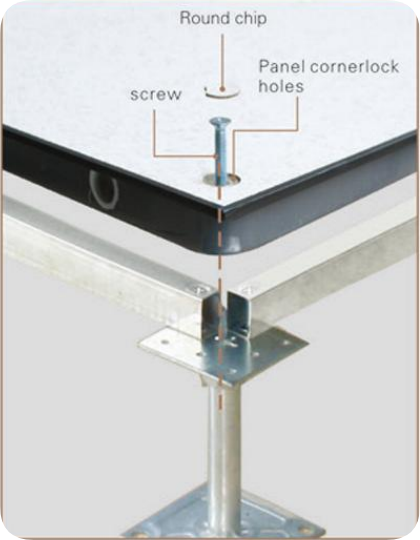

Cornerlock laminate panel is designed for seismic requirement. The system is more rigid because the panel is not only supported by stringer but also lock down to the pedestals. A tailor made round chip of the floor finish material will cover the panel cornerlock holes beautifully.
Features
♦ All steel components, high mechanical feature, high loading capacity, fire-proof;
♦ Light weight for ease of floor;
♦ Surface with anti-static painting, soft light, anti-wear, anti-corrosion;
♦ Dimensional accuracy allows free interchangeability.
♦ Light weight for ease of floor;
♦ Surface with anti-static painting, soft light, anti-wear, anti-corrosion;
♦ Dimensional accuracy allows free interchangeability.
Application

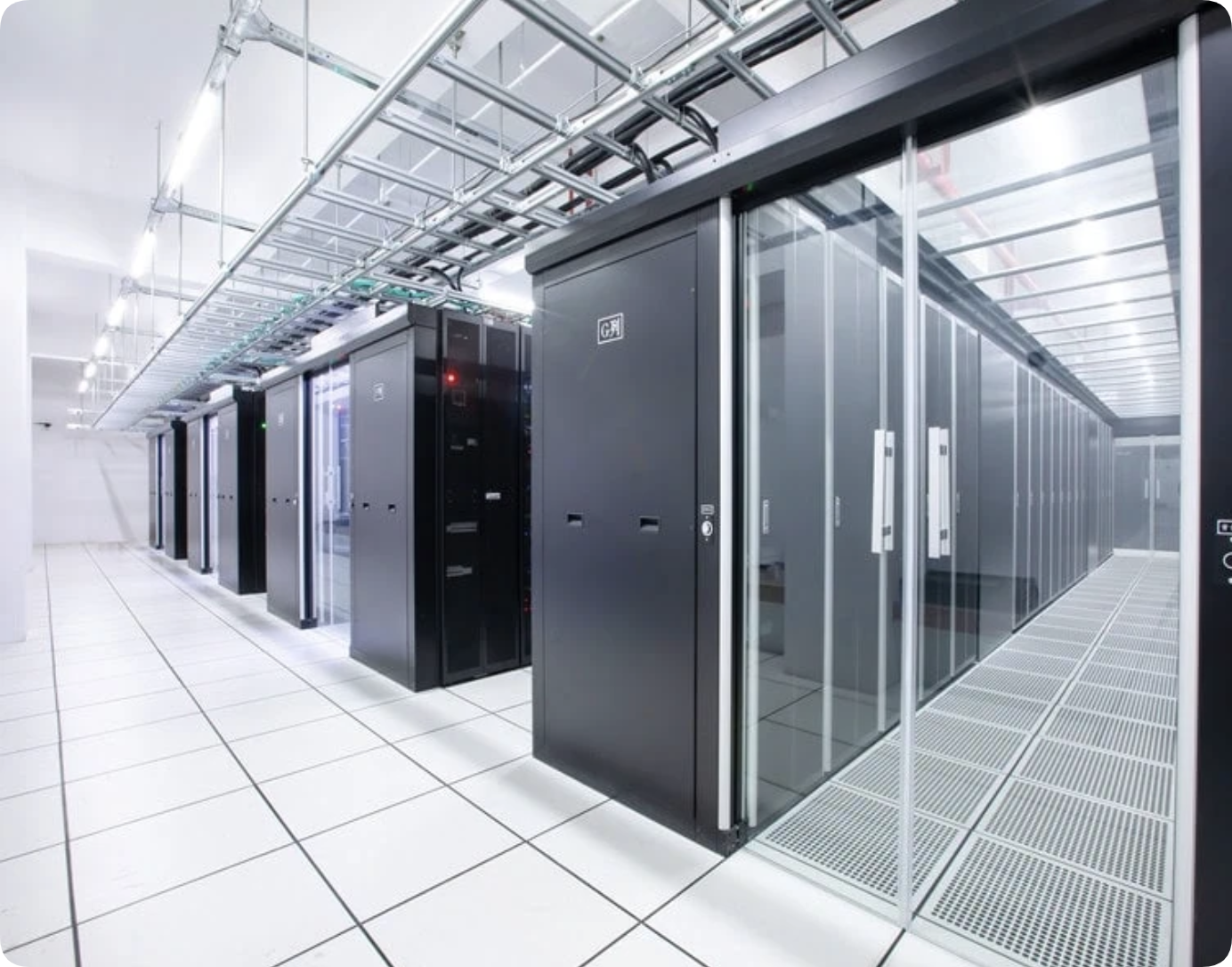

It is suitable for a wide range of application from typical data/computer centers to telecommunication rooms, mission critical facilities, electronic assembly areas and other general purpose equipment rooms.
Download Brochures
Steel cement raised access flooring with anti-static HPL finish.pdf
