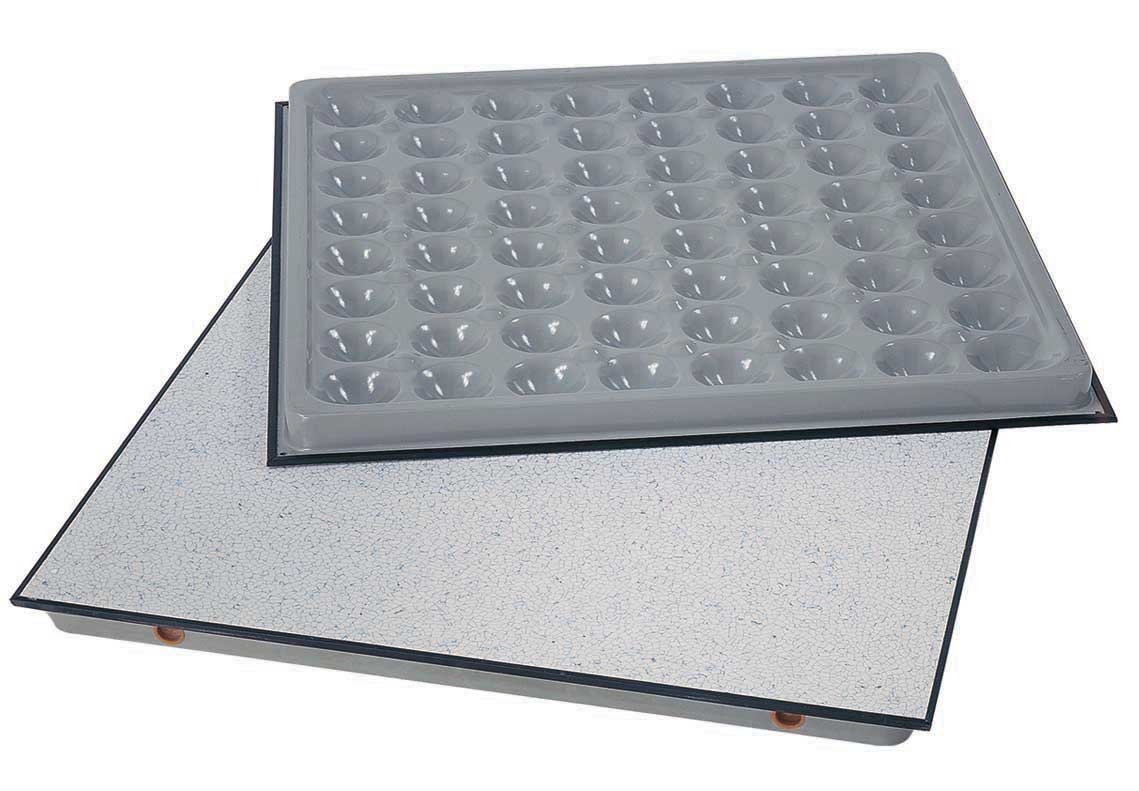

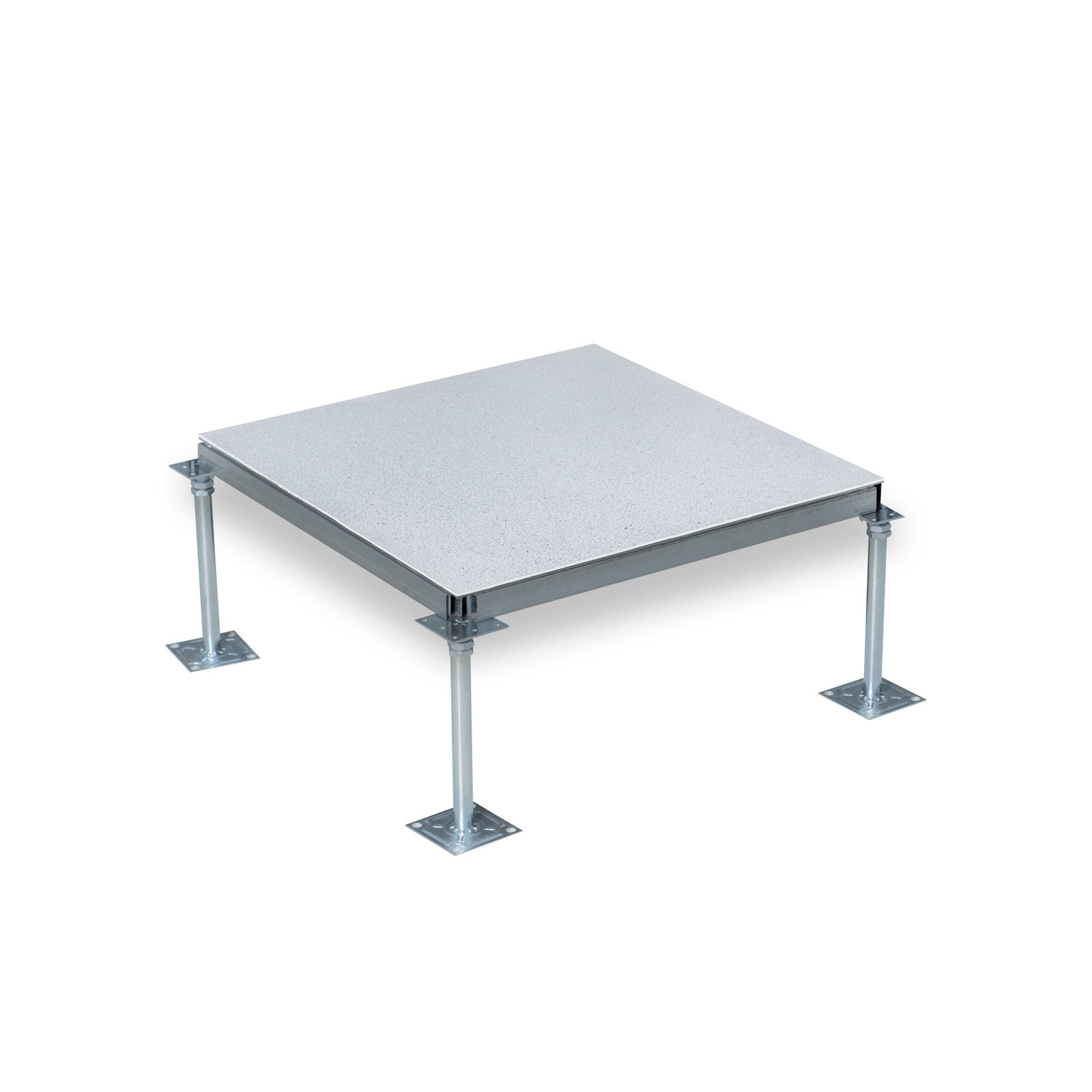

Steel cement raised access floor with anti-static PVC finish
Technical Specs
The steel raised PVC flooring is laminated with vinyl tile. Vinyl uses a process to ensure the static elements are distrubuted evenly through the entire tile thickness. This ensures a lifetime of consistent resistance performance regardless of wear. The panel is recommended in electronic manufacturing facilities, computer/server room installations, clean rooms, telecommunication rooms and heaith care laboratories.
| Type | FS700 | FS800 | FS1000 | FS1250 | FS1500 | FS2000 |
| Size(mm) | 600×600 | 600×600 | 600×600 | 600×600 | 600×600 | 600×600 |
| Thickness (mm) | 35 | 35 | 35 | 35 | 35 | 35 |
| Concentrated Load(N/KG) | 2950/300 | 3550/363 | 4450/454 | 5560/567 | 6665/680 | 8908/909 |
| Rolling Load(N) | 2250 | 2950 | 3560 | 4450 | 5560 | 7790 |
| Ultimated Load(N) | 8850 | 10650 | 13350 | 16680 | 19995 | 26724 |
| Uniform Load(N/M2) | 12500 | 16500 | 23000 | 33000 | 39324 | 52557 |
| Fire protection performance | Non-combustible Material | Non-combustible Material | Non-combustible Material | Non-combustible Material | Non-combustible Material | Non-combustible Material |
With reference to National Standards and US CISCA test Standards.
Vinyl Colors
GR-1001
GR-1002
GR-1003
GR-1005
GR-1001
GR-1007
GR-1008
GR-1009
GR-1010
GR-1011
GR-1012
GR-1013
Features
♦ System conductivity ensurance;
♦ No dust;
♦ Meet class A fire rating;
♦ Durable;
♦ Safe working load;
♦ Extensive selection of vinyl coverings.
♦ No dust;
♦ Meet class A fire rating;
♦ Durable;
♦ Safe working load;
♦ Extensive selection of vinyl coverings.
Application

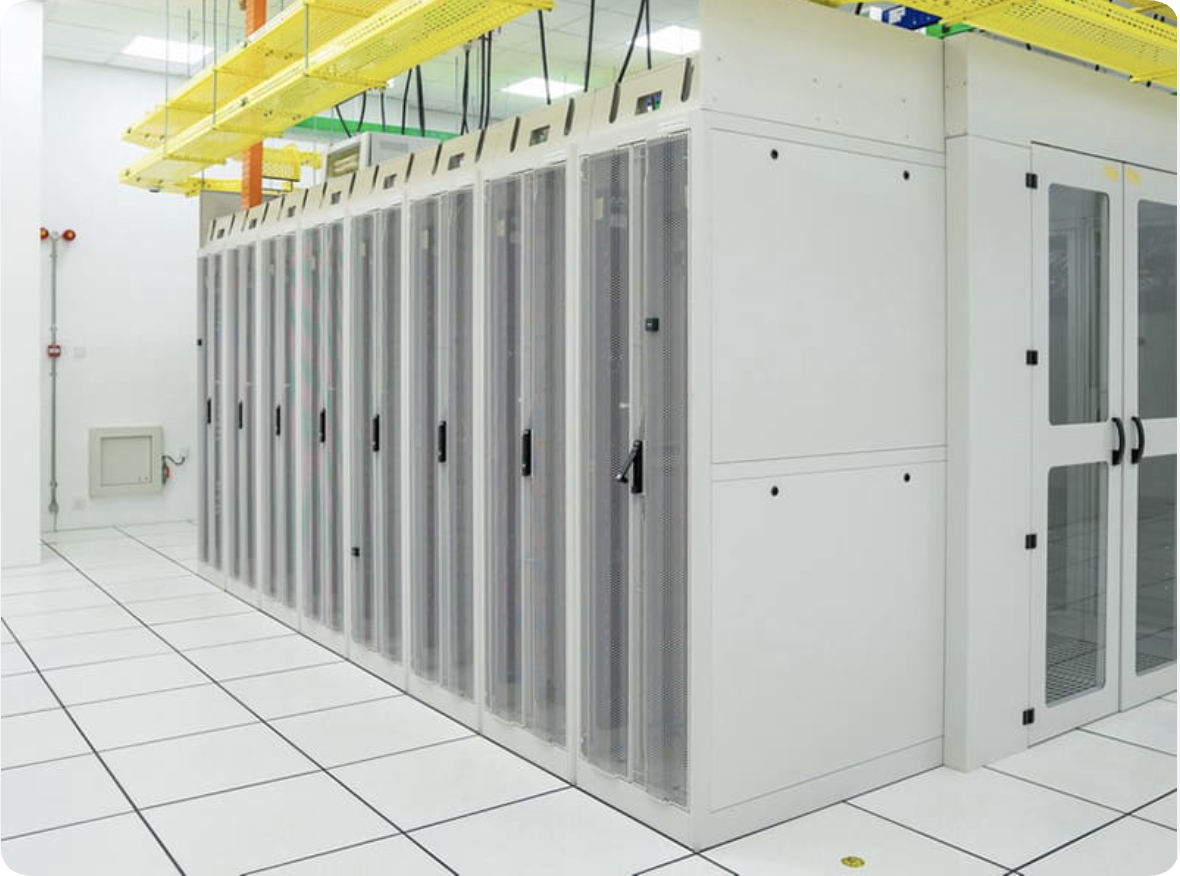

It is suitable for a wide range of application from typical data/computer centers to telecommunication rooms, mission critical facilities, electronic assembly areas and other general purpose equipment rooms.
Download Brochures
Steel cement raised access flooring with anti-static/conductive PVC finish.pdf
