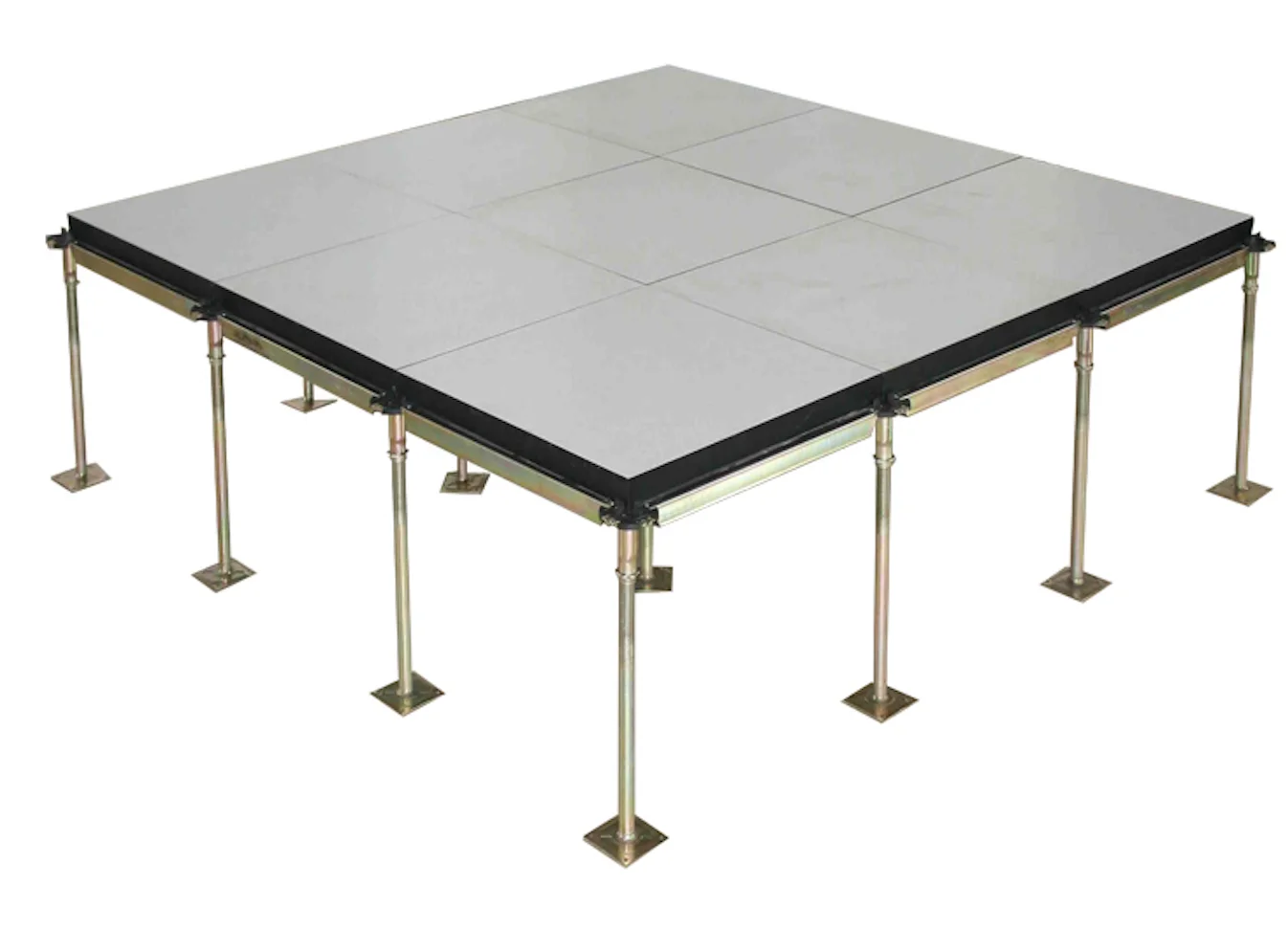

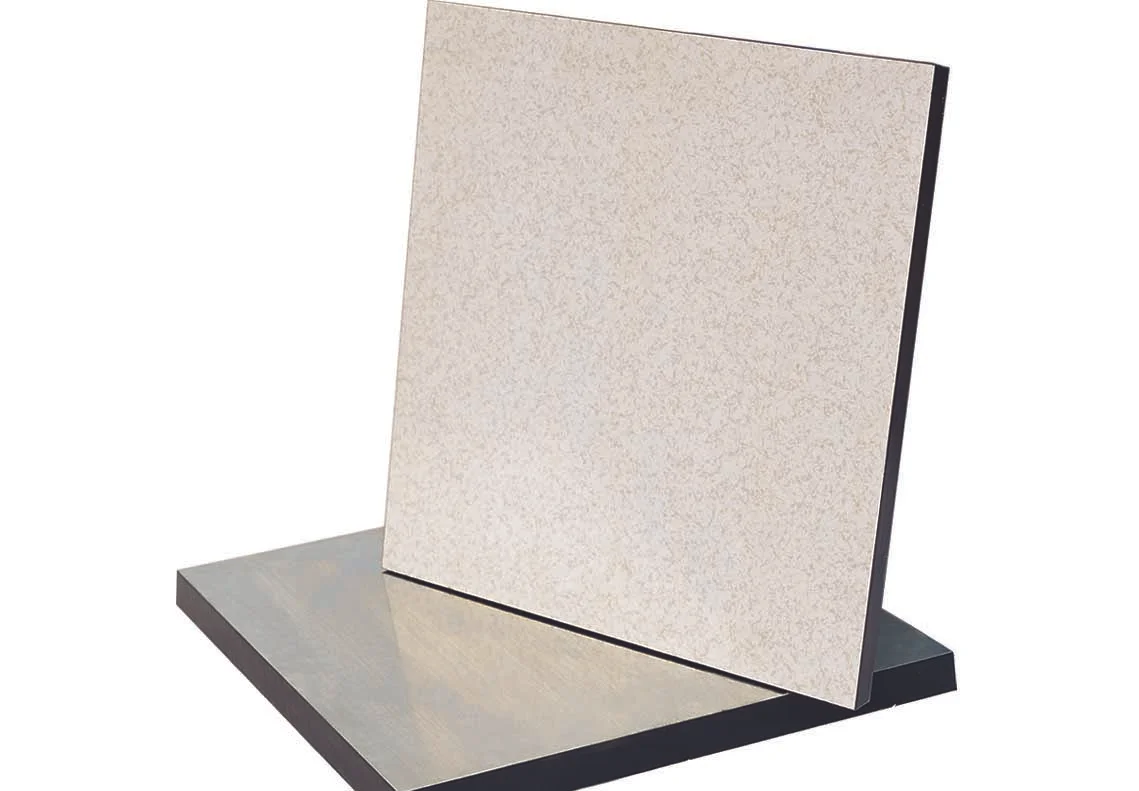

Woodcore anti-static raised access floor
Technical Specs
A wood floor with an anti-static HPL (High-Pressure Laminate) finish is a type of raised flooring system commonly used in environments requiring both structural support and electrostatic discharge (ESD) control, such as data centers, server rooms, cleanrooms, or office spaces with sensitive electronics.
| Type | P-EW800 | P-EW1000 |
| Size(mm) | 600×600 | 600×600 |
| Thickness(mm) | 30 | 40 |
| Concentrated Load(N/KG) | 3550/363 | 4450/454 |
| Rolling Load(N) | 2950 | 3560 |
| Ultimated Load(N) | 10650 | 13350 |
| Uniform Load(N/M2) | 16500 | 23000 |
| Fire protection performance | Non-combustible Material | Non-combustible Material |
| System resistance | Anti-static floor system resistance 106~1010Ω | Anti-static floor system resistance 106~1010Ω |
With reference to National Standards and US CISCA test Standards.
Features
♦ Lightweight yet strong;
♦ Cost-effective;
♦ Easy to cut for custom installations;
♦ Good acoustic and thermal insulation.
♦ Cost-effective;
♦ Easy to cut for custom installations;
♦ Good acoustic and thermal insulation.
Application

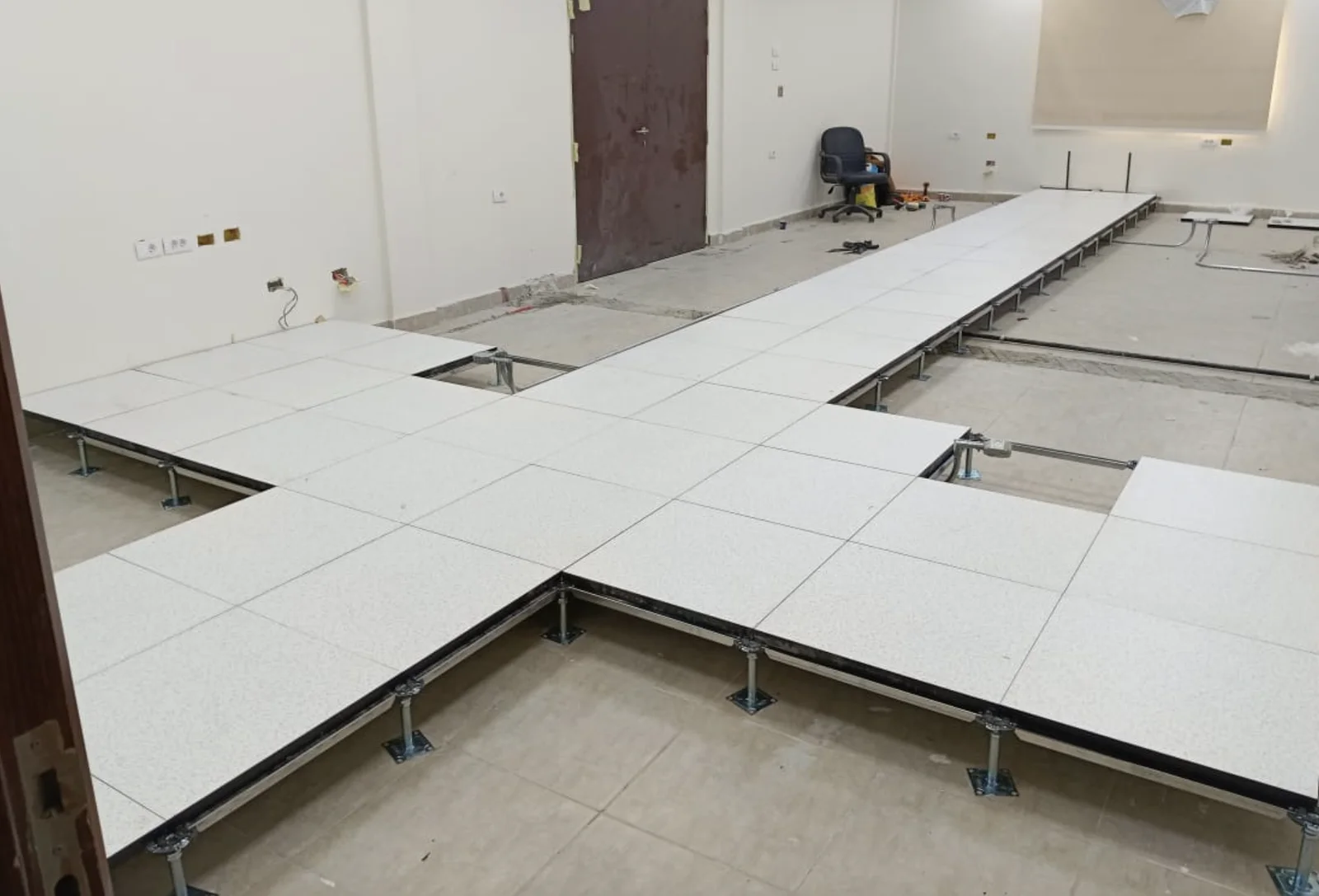

It is suitable for a wide range of application from typical data/computer centers to telecommunication rooms, mission critical facilities, electronic assembly areas and other general purpose equipment rooms.
